Three-Section Power-Operated Pass Box with Integrated Conveyor

Productdetails:

Plaats van herkomst: Guangdong, China
Merknaam: MRJH
Certificering: ISO 14644,EU GMP,FDA

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1
Prijs: Contact Us
Verpakking Details: Houten frame
Levertijd: 7-15 werkdagen
Beste prijs Contact

Gedetailleerde informatie
Externe dimensies: W600 × D600 × H1000 (mm) Ruimte van de luchtdouche: W400 × D420 × H400 (mm)
Custom gemaakt: Steun officiële website: Het is de bedoeling van de Commissie om de volgende maatregelen te treffen:
Certificering: ISO,CE,UL,RoHS

Productomschrijving

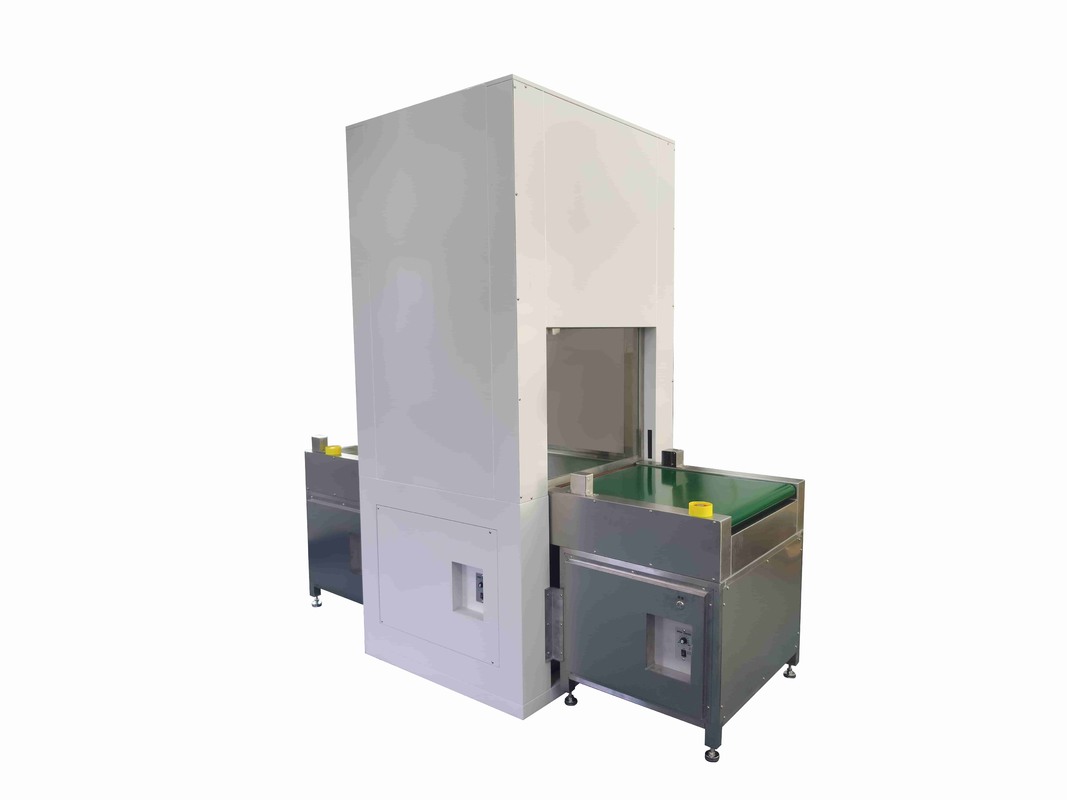

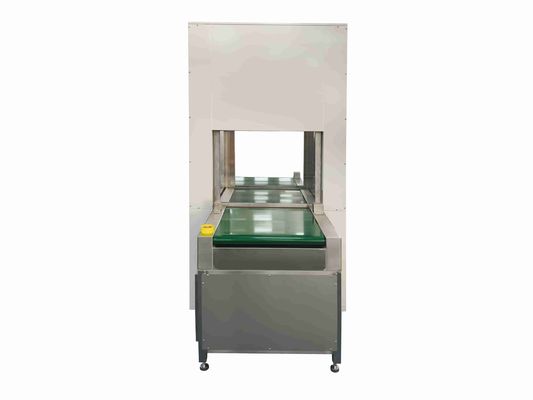

Three-Section Power-Operated Pass Box with Integrated Conveyor 0


Technical Specifications

Category Specification
Model AeroSeal TriFlow-TS300
Standard Sizes (W x H) 600mm x 600mm, 800mm x 800mm, 1000mm x 1000mm (Custom sizes available)
Door Operation Electric three-section vertical lift, motor-driven
Activation Dual-side push buttons, infrared sensors, foot pedal, or key switch
Interlock System Mechanical and/or electrical interlock prevents both doors from opening simultaneously

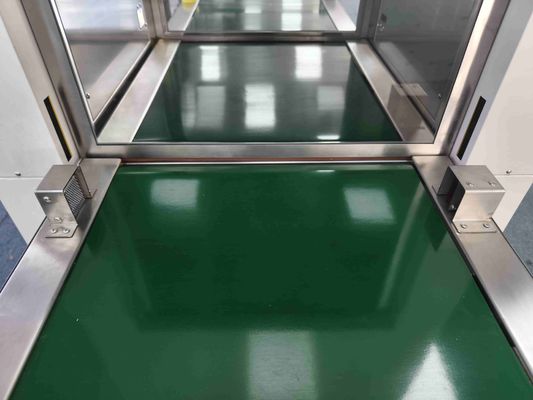

Conveyor Type Powered roller conveyor (Standard); FDA-approved belt conveyor (Optional)
Conveyor Load Capacity Up to 50 kg (110 lbs)
Construction Material 304 or 316L Stainless Steel (finish: #4 Brushed or electropolished)
Viewing Window Double-pane tempered glass for thermal break and condensation prevention
Sealing Silicone or EPDM gasketing on all doors and frame
Power Supply 110V/220V, 50/60Hz (Configurable)

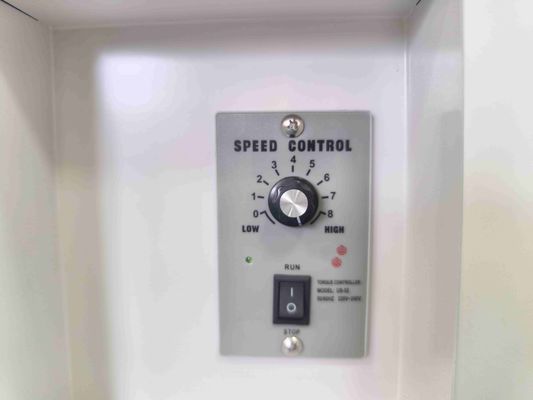

Control Interface IP65 rated touchscreen HMI with cycle counters and diagnostic alerts
Options UV-C Germicidal Lamp, HEPA/ULPA Filter Fan Unit, Label Printer Integration, BMS Communication Port (Modbus, BACnet)


Applications

This advanced pass-through window is critical for industries where separation and sterility are paramount:

  • Pharmaceutical & Biotechnology: Transferring components between Grade A/B/C/D areas.

  • Medical Device Manufacturing: Moving parts and assembled devices through controlled environments.

  • Hospital Pharmacy & Compounding: Safe transfer of ingredients and prepared IV bags into ISO Class 5 isolators or hoods.

  • Food & Beverage Production: Maintaining hygiene zones in high-care and low-care environments.

  • Electronics & Microelectronics: Preventing particulate contamination during the assembly of sensitive components.

  • Laboratories: Handling samples between different containment level labs.


How It Works (Process Flow)

  1. Load: An operator from Side A places items onto the internal conveyor.

  2. Initiate: The cycle is started via sensor, button, or pedal. Side A door closes and seals.

  3. Transfer: The internal conveyor automatically activates, moving the items to the center of the chamber.

  4. Receive: Once the conveyor stops, the interlock releases, allowing the operator on Side B to open their door and retrieve the items. The doors cannot open at the same time.

  5. Return: The empty conveyor can be triggered to return to Side A or wait for the next load.


Why Choose Our Pass-Through Window?

  • Engineered for Reliability: Built with industrial-grade components for 24/7 operation.

  • Customizable Solutions: We offer a wide range of sizes, materials, and options to fit your exact process needs.

  • Global Compliance: Designed and tested to meet cGMP, GAMP, and other international regulatory standards.

  • Expert Support: Our team provides full-service support from design and installation to validation and maintenance.

Three-Section Power-Operated Pass Box with Integrated Conveyor 1


Three-Section Power-Operated Pass Box with Integrated Conveyor 2


Frequently Asked Questions

1. Q: How does the three-section door design benefit us compared to a traditional two-section or swing door?
A: The three-section vertical lift design offers two key advantages:

  • Superior Space Efficiency: It requires absolutely zero lateral or overhead clearance outside the unit's footprint. This is critical in tight cleanroom layouts where a swing door's arc or a sliding door's track would be impractical or pose a contamination risk.

  • Enhanced Contamination Control: The door opens and closes vertically in a compact, controlled motion. This creates significantly less air turbulence than swinging or sliding doors, which can disrupt airflows and pressure differentials, helping to steadfastly maintain your room's ISO classification.

2. Q: Can the integrated conveyor system be customized for our specific products and workflow?
A: Absolutely. We understand that no two facilities are identical. Our standard model features a powered roller conveyor, but we offer a range of customization options to ensure seamless integration into your process:

  • Conveyor Type: Roller, belt, or even custom conveyor beds can be specified.

  • Load Capacity: Systems can be engineered to handle loads beyond the standard 50 kg capacity.

  • Dimensions: The internal chamber and conveyor width/length can be tailored to fit your specific trays, totes, or components.

  • Control Integration: The unit can be integrated with your Building Management System (BMS) or programmed with custom transfer cycles (e.g., timed UV sterilization between transfers).

3. Q: What safety and interlocking features are in place to prevent a breach of containment?
A: Safety and integrity are our top priorities. The AeroSeal TriFlow™ is equipped with a multi-layered protection system:

  • Mechanical Interlock: A physical system ensures that one door is mechanically prevented from opening until the other is fully closed and sealed, making a simultaneous opening impossible.

  • Electrical Interlock: The control system provides a second layer of security, with door position sensors that must confirm the correct sequence of operation before allowing any action.

  • Audible/Visual Alarms: The system includes configurable alarms that alert operators of any errors, attempted breaches, or if a door is left open for a pre-set period.

  • Emergency Stop: An easily accessible E-stop button halts all operations immediately in case of any issue.
